Renderings of each of the modules

Rather than disappear down a 3D-rendering rabbit hole, each module is presented in a simple KiCad render. The first System 300 will come with the twelve modules shown below.

2017-07-19 renderings module set

I found myself going down a rabbit-hole of 3D rendering products and techniques when I’d rather be building synthesizers, so I’ve opted to present each module in the simple KiCad render. The first System 300 will come with 12 modules shown below.

Gallery

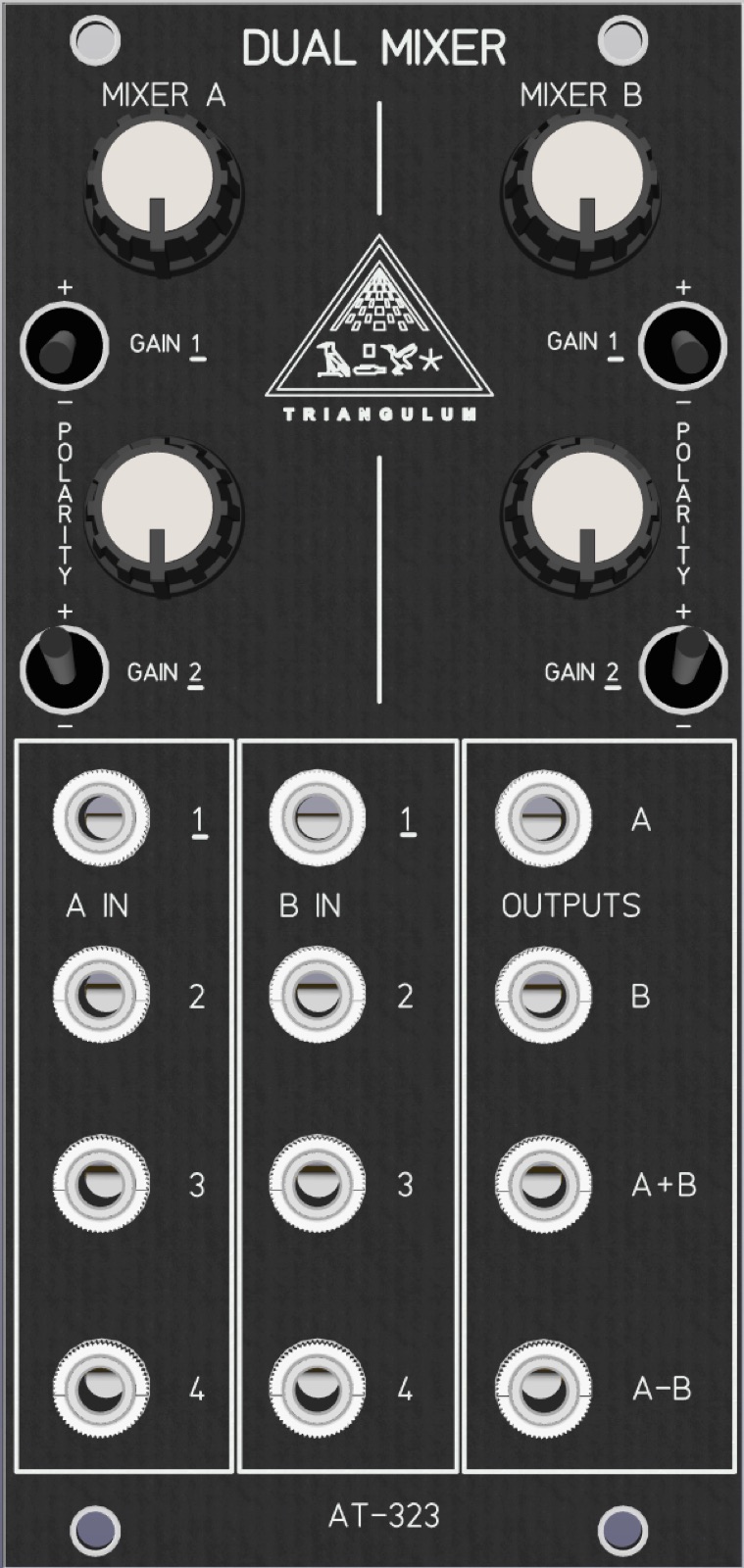

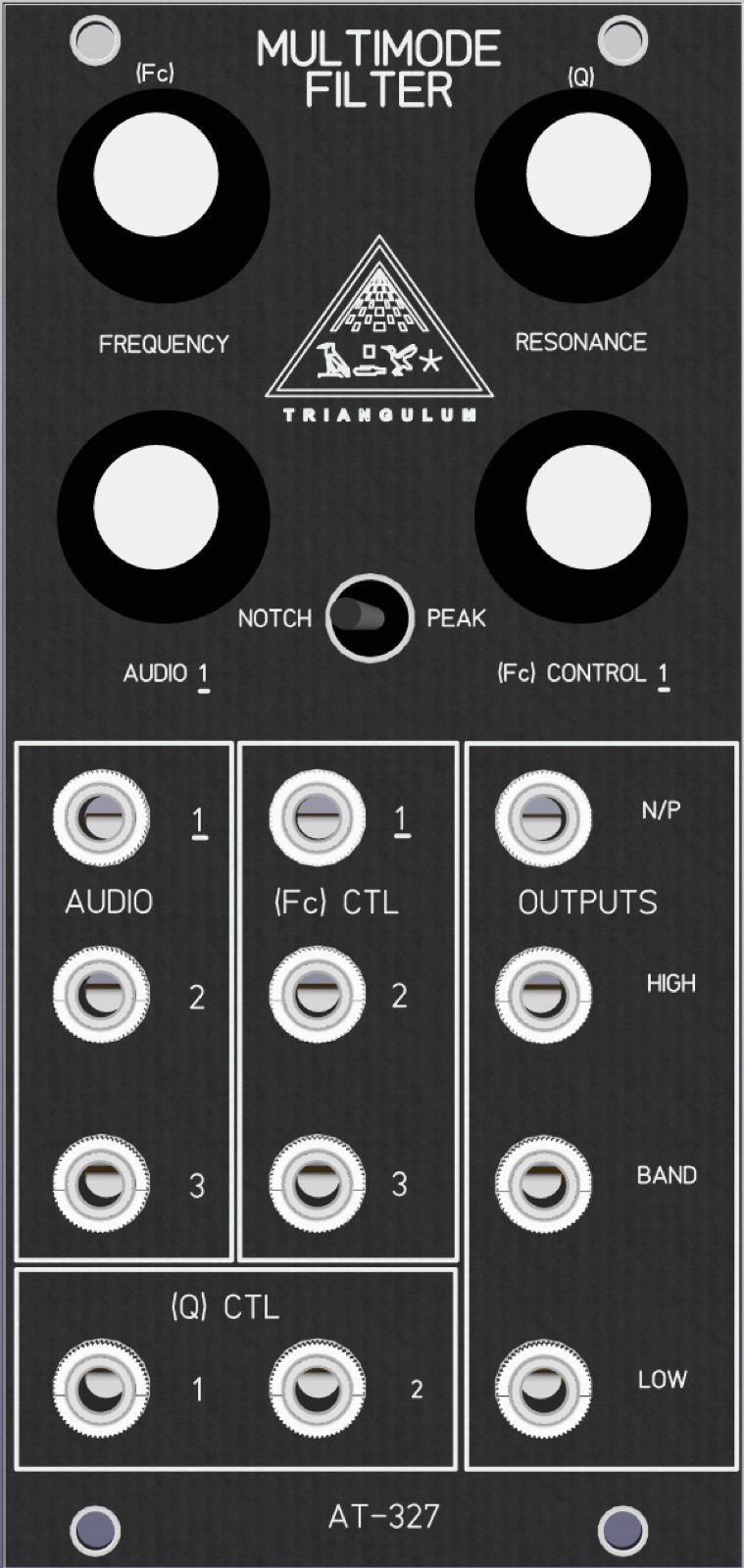

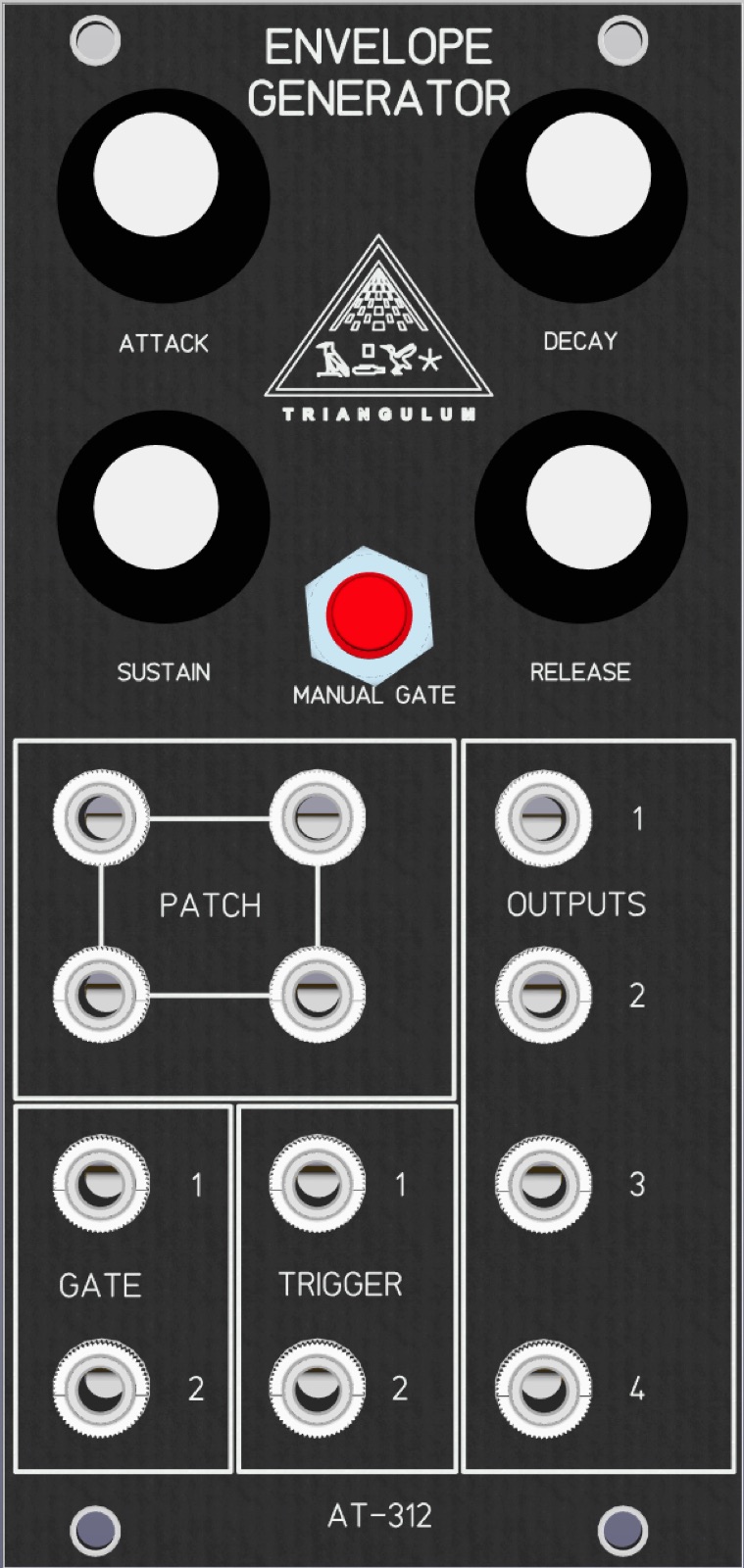

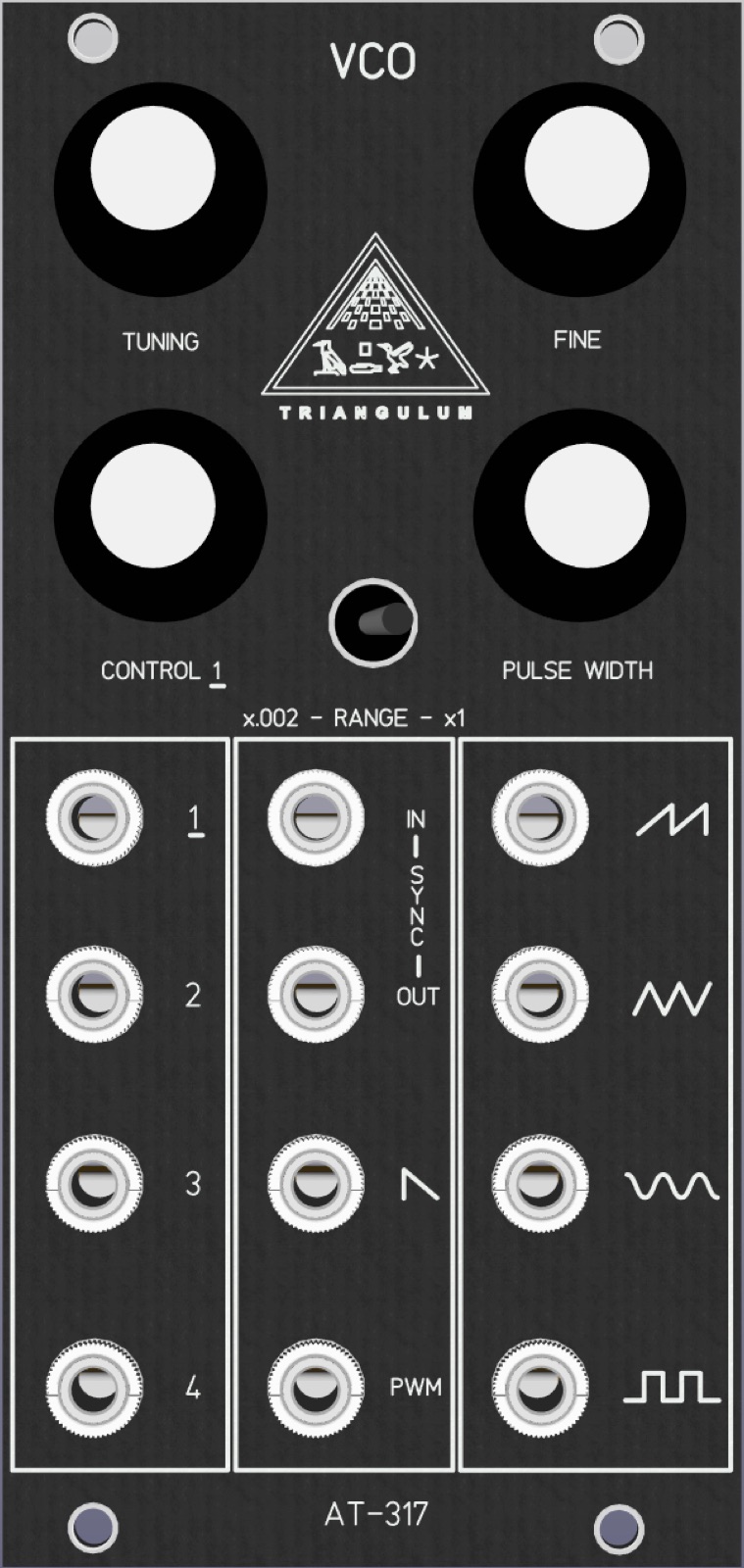

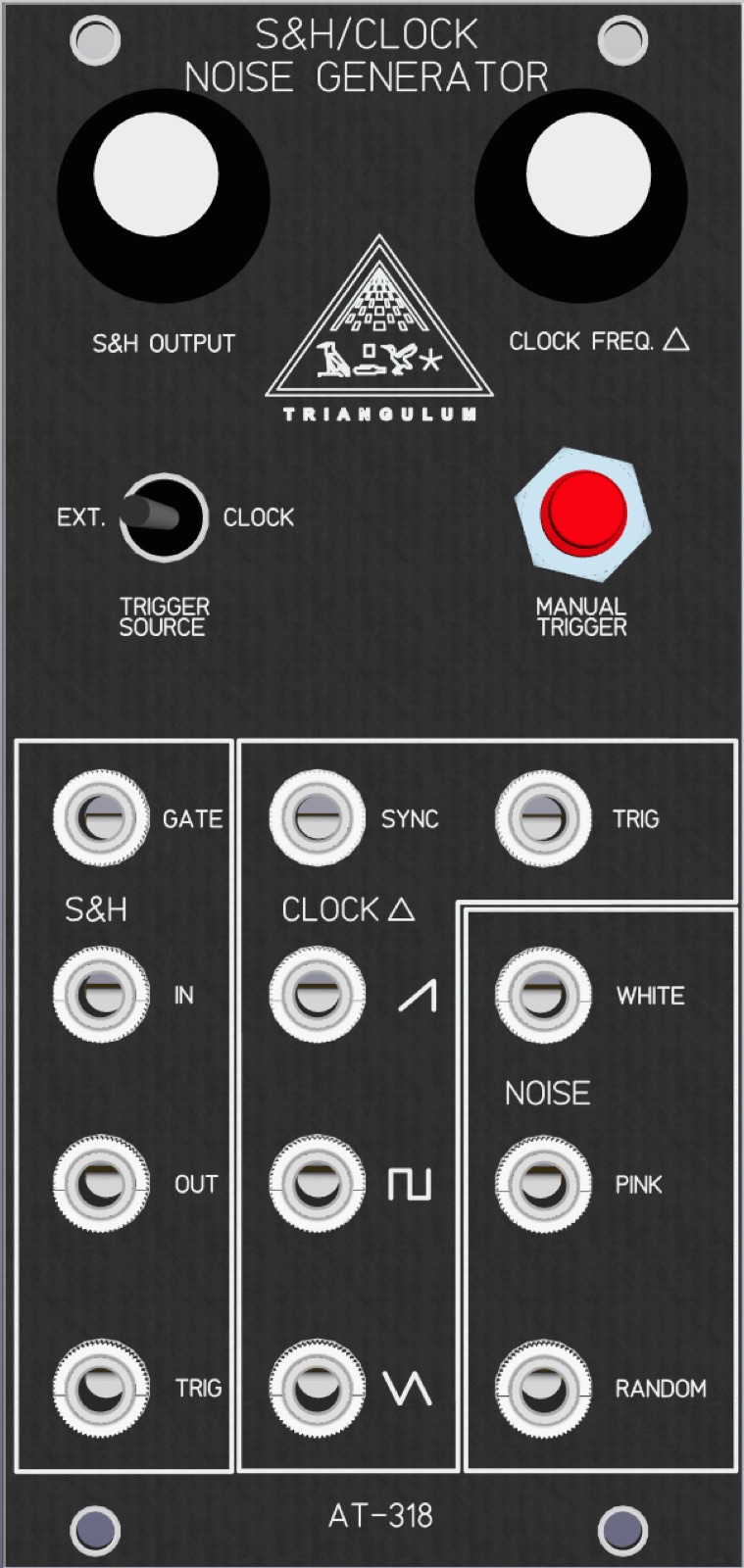

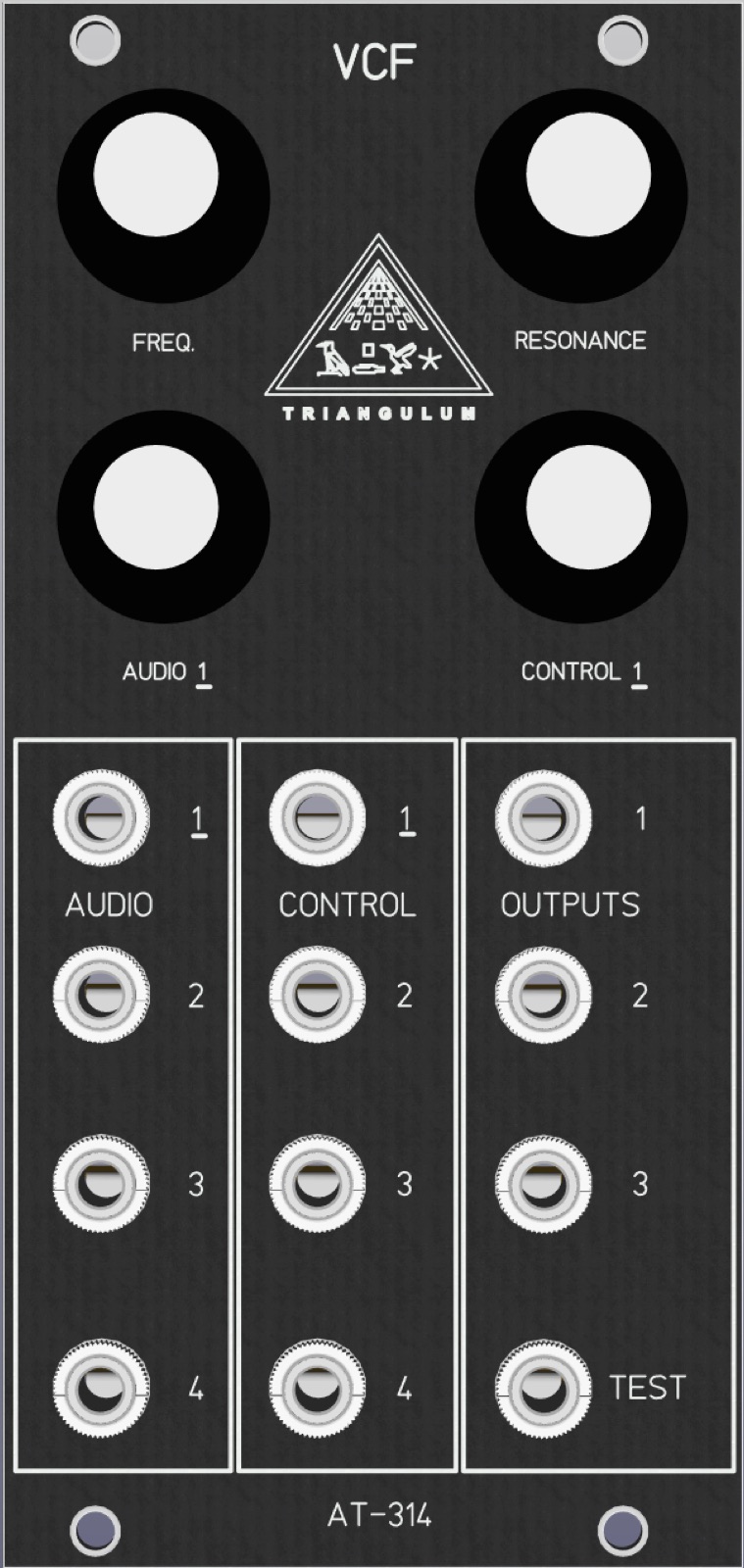

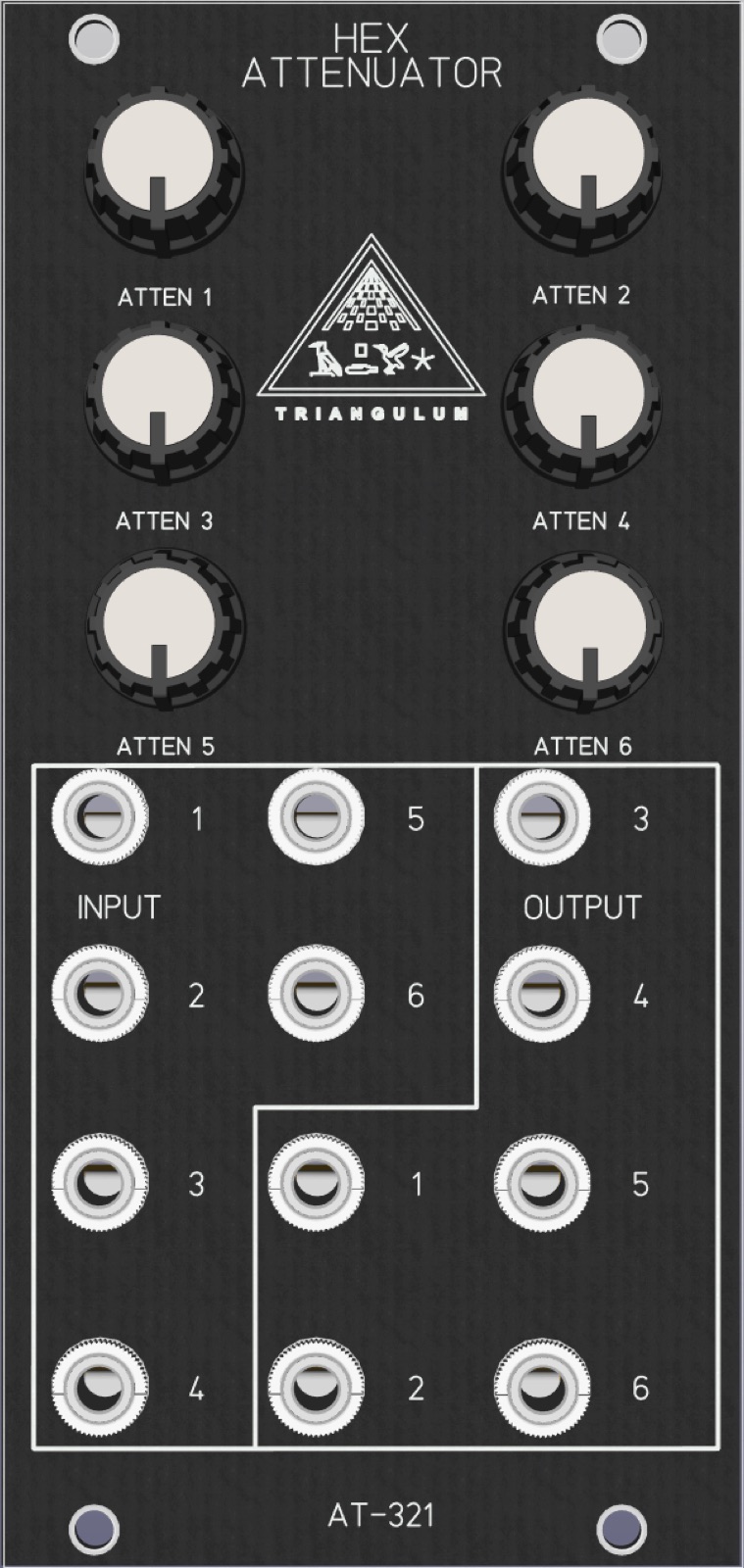

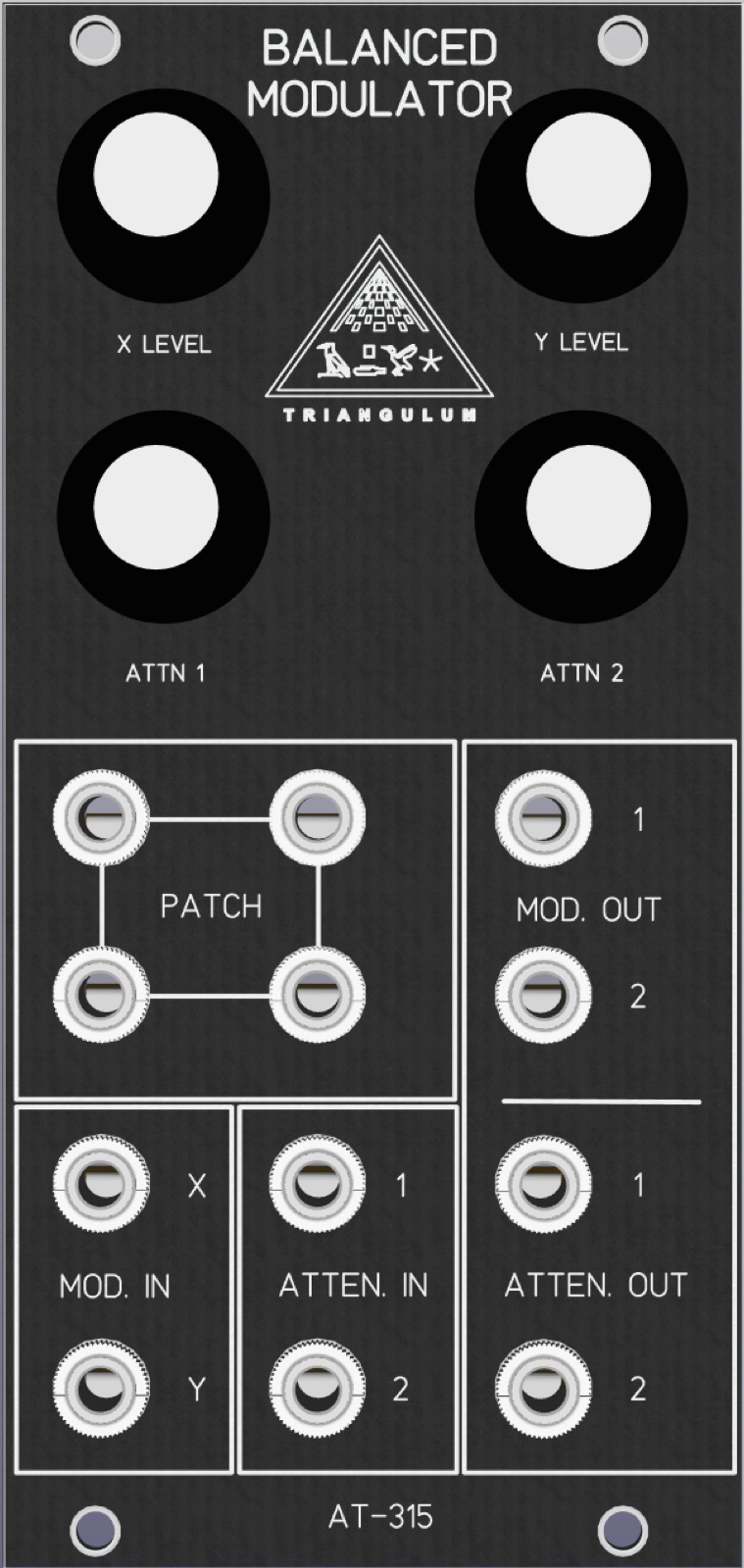

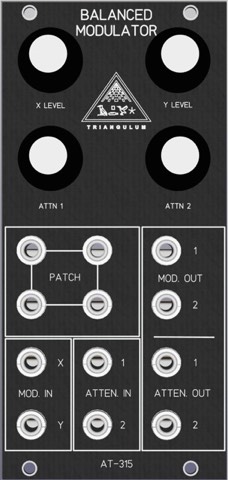

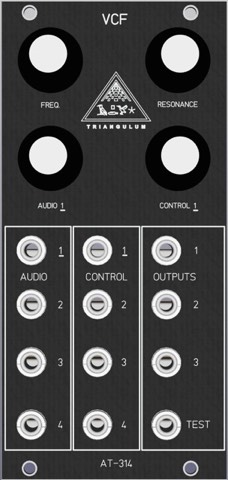

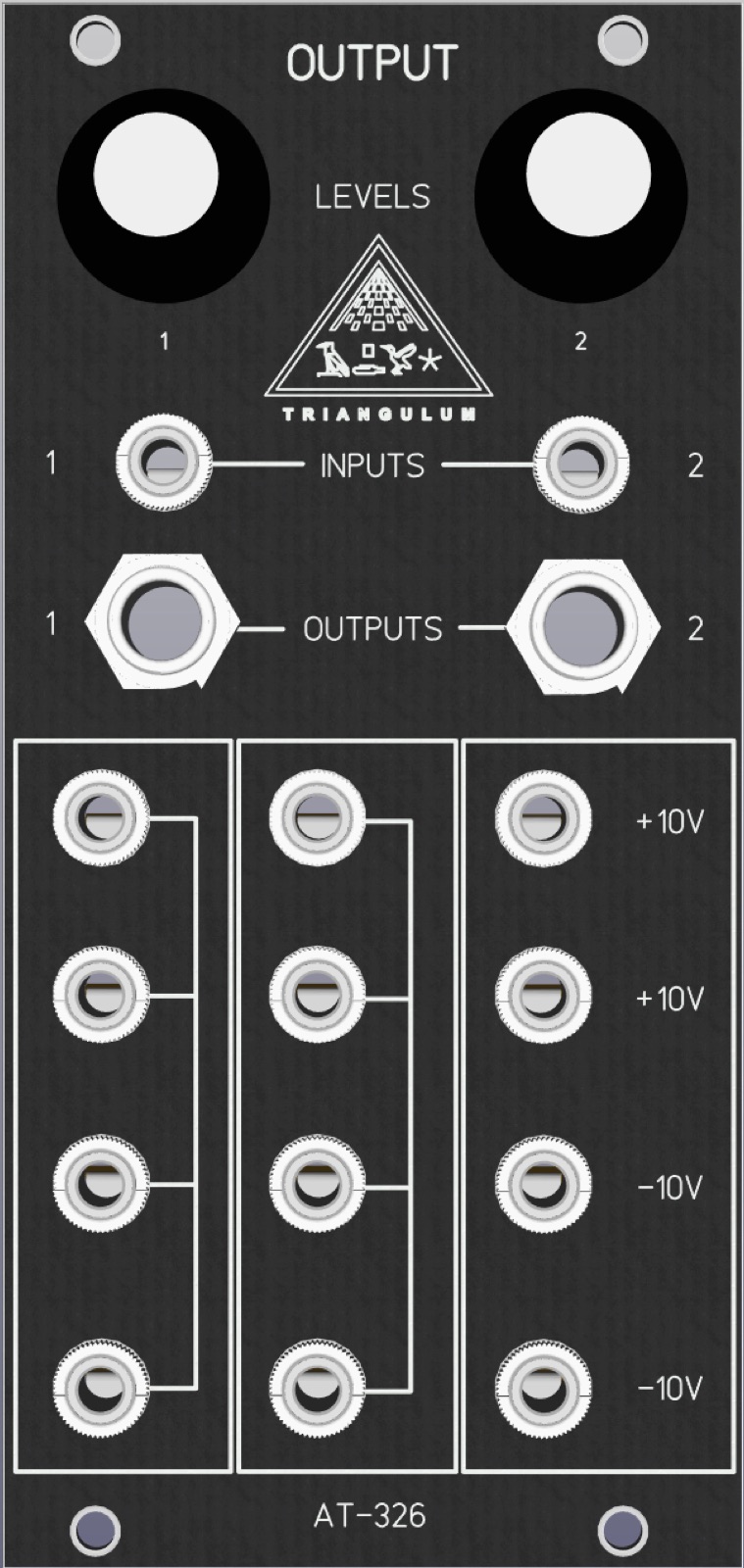

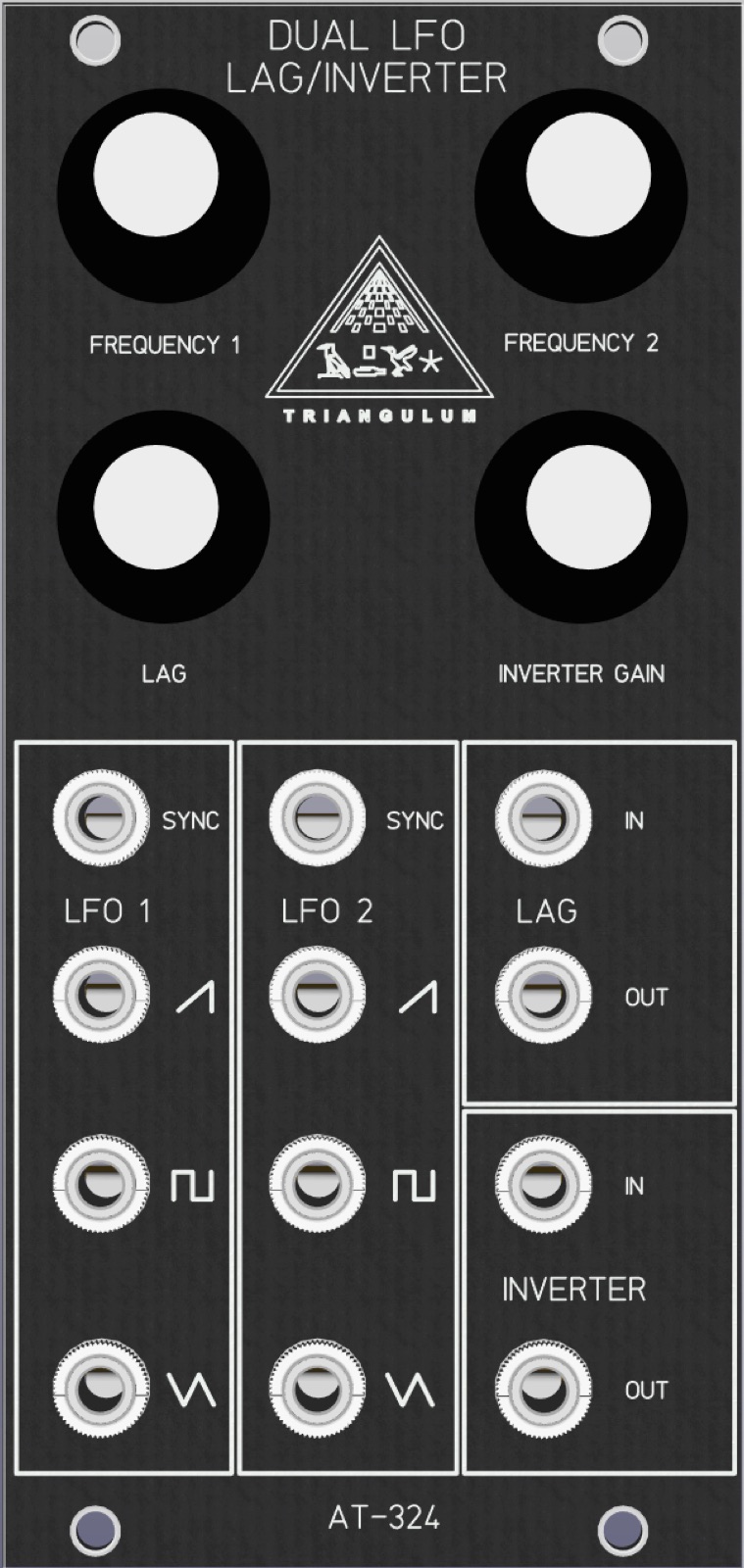

The twelve modules
